Security PCBA – Product Description

Product Overview

Yaxingda provides high‑reliability PCBA manufacturing services for security and surveillance electronics. Our security PCBAs are engineered to serve as the core control and processing units for a wide range of security devices—from CCTV cameras and access control systems to intrusion detection and smart alarm systems-. With 20 years of PCBA EMS experience, ISO9001 and IATF 16949 certifications, and a 24,000㎡ manufacturing facility equipped with 20 high‑speed SMT lines, we deliver robust, reliable PCB assemblies that security systems demand.

Applications

Our security PCBA solutions are deployed across the full spectrum of security electronics, including:

• CCTV & Surveillance Cameras – main control boards, infrared LED boards, power supply boards, and pan‑tilt driver boards-

• Access Control Systems – controllers for proximity card readers, biometric sensors, and door entry systems

• Intrusion Detection & Alarm Systems – sensor hubs, alarm controller boards, and perimeter security modules

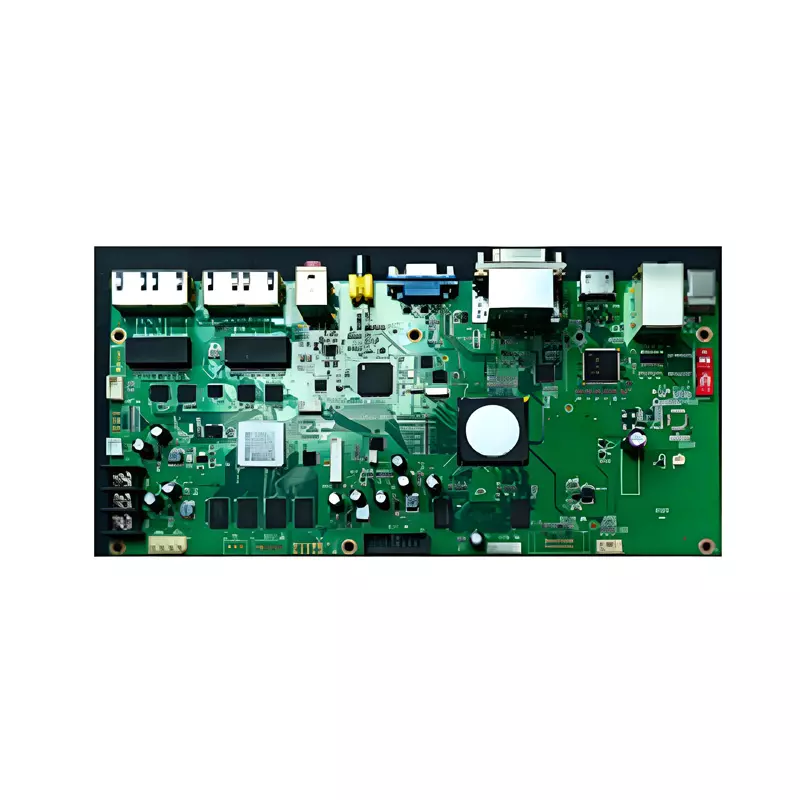

• Video Door Phones & Intercom Systems – multi‑interface boards supporting DVI, Ethernet, USB, and RS

• Smart Home Security – smoke detectors, motion sensors, and environmental monitoring devices

Manufacturing Capabilities

• 20 high‑speed SMT lines with 70+ placement machines – daily placement capacity exceeding 40 million points

• 12 DIP insertion lines – daily throughput of over 2 million components

• 8 fully automatic conformal coating lines – providing protection against moisture, fungus, and salt spray for outdoor and harsh‑environment security equipment

• Comprehensive testing – AOI (Automated Optical Inspection), X‑ray inspection, ICT (In‑Circuit Test), and FCT (Functional Testing)

• Full‑process traceability – MES and ERP systems enable digitalized quality control from component sourcing to final shipment

Quality Assurance

Security electronics demand uncompromising reliability. Yaxingda's quality management system is certified to ISO9001 and IATF 16949 standards. Every PCBA undergoes rigorous testing including automated optical inspection, X‑ray inspection for BGA and hidden solder joints, in‑circuit testing, and functional testing to verify performance under real‑world operating conditions. Our conformal coating process adds an extra layer of protection for security devices deployed in outdoor, high‑humidity, or temperature‑fluctuating environments.

Why Choose Yaxingda for Security PCBA

• 20 years of PCBA EMS expertise

• 24,000㎡ manufacturing facility with 1,000+ employees

• ISO9001 & IATF 16949 certified quality systems

• Full turnkey services – from component sourcing and design optimization to assembly, testing, and box build

• Proven track record serving clients in new energy, industrial control, automotive electronics, and security sectors

• Cost‑effective manufacturing with localized supply chain and engineering support
